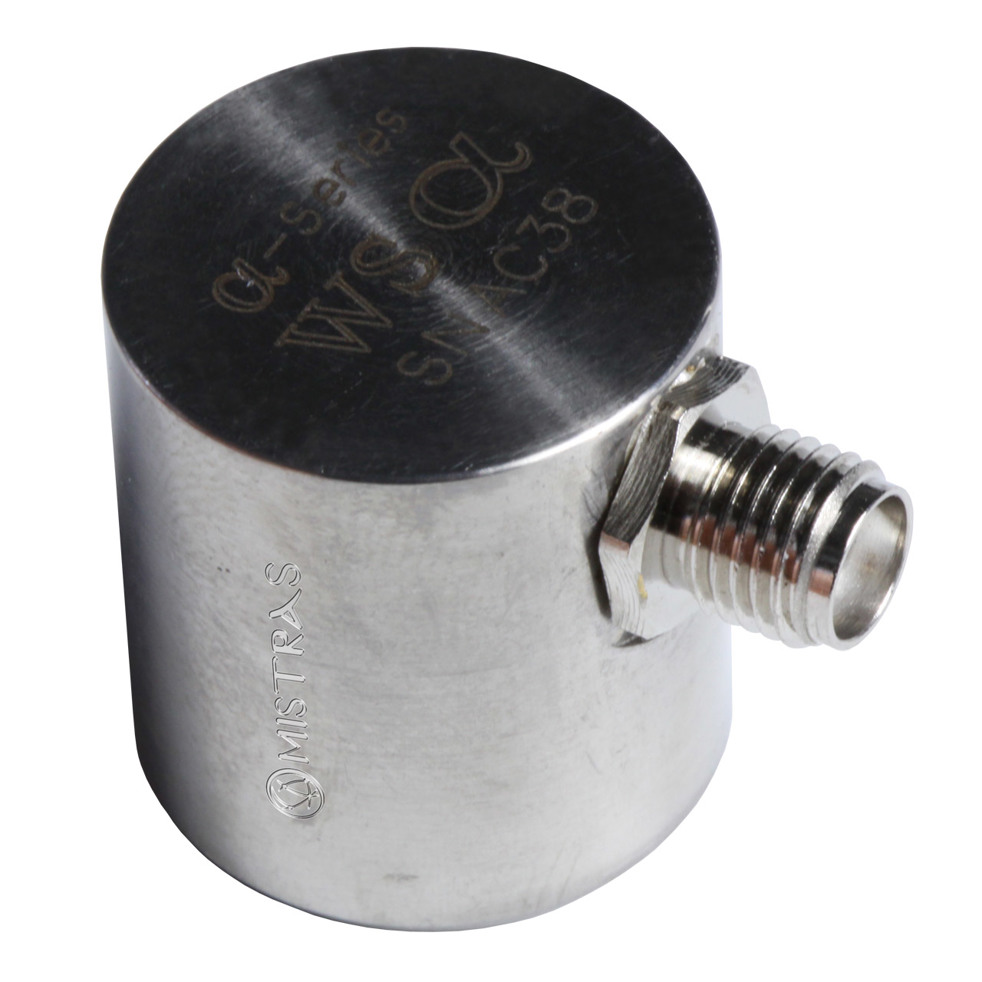

WSa - 100-1000 kHz Wideband AE Sensor
The WSα sensor is a single-ended, wideband frequency, Acoustic Emission sensor. Featuring a SMA connector within an integrated stainless steel cavity, the WSα is machined from a solid rod. A 30-degree angle at the bottom edge of the sensor cavity reduces the risk of electric shorts from the sensor cavity to conductive test surfaces. The WSα takes advantage of the general Alpha series (consisting of R3α, R15α, R30α and WSα sensors) sensor features and the WD sensor's high sensitivity and wideband frequency range.
- Single-ended wideband AE sensor.
- Combines Alpha-series construction with wideband sensitivity.
- Machined from solid stainless steel.
- Angled cavity design helps reduce the risk of electrical shorts.
- Features an integrated SMA connector.
- Dimension Dia. x HT (mm [Inch]): 19x21 [.75x.85]
- Weight (gm): 32
- Operating Temp. (°C): -65 to 175
- Shock Limit (g): 500
- Case Material: Stainless Steel (304)
- Face Material: Ceramic
- Connector Type: SMA
- Connection Location: SIDE
- Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: 55 [-62]
- Operating Freq. Range (kHz): 100-1000
- Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: 125 [650]
- Directionality (dB): ±1.5
- Grounding: B
- Seal Type: EPOXY
