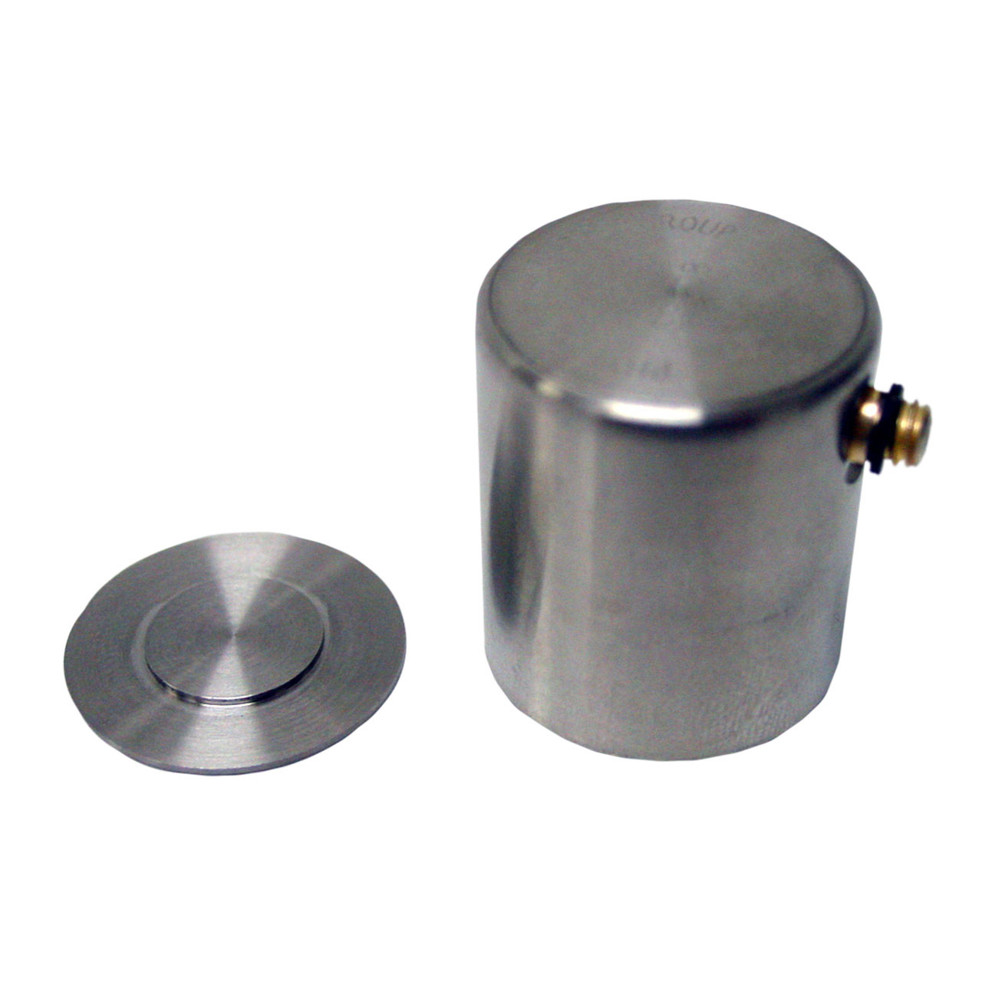

S9208 - 20-1000 kHz Miniature High Fidelity Displacement AE Sensor
S9208 is a high fidelity displacement sensor. It is specially designed to provide a flat frequency response to surface acoustic displacement over its entire frequency bandwidth. It is primarily designed for research applications for studying the surface displacement of structures due to different AE modes. It can be used in applications requiring frequency analysis to characterize different kinds of defects. The sensor features a rugged stainless steel body with a microdot connector on the side of the sensor.
WARNING
The S9208 is a special high fidelity displacement sensor and as a result it is very fragile and must not be exposed to shocks in excess of 10g.
- High-fidelity displacement sensor for AE research.
- Provides a flat response to surface acoustic displacement.
- Supports frequency analysis and defect characterisation.
- Features a rugged stainless-steel body.
- Fragile design should not be exposed to shocks above 10g.
- Dimension Dia. x HT (mm [Inch]): 25x25 [1x1]
- Weight (gm): 90
- Operating Temp. (°C): -54 to 121
- Shock Limit (g): 10
- Case Material: Stainless Steel (304)
- Face Material: Stainless Steel (304)
- Connector Type: Microdot 10-32
- Connection Location: SIDE
- Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: 45 [-85]
- Operating Freq. Range (kHz): 200-1000
- Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: 500 [500]
- Directionality (dB): ±1.5
- Grounding: A
- Seal Type: SOLDER
