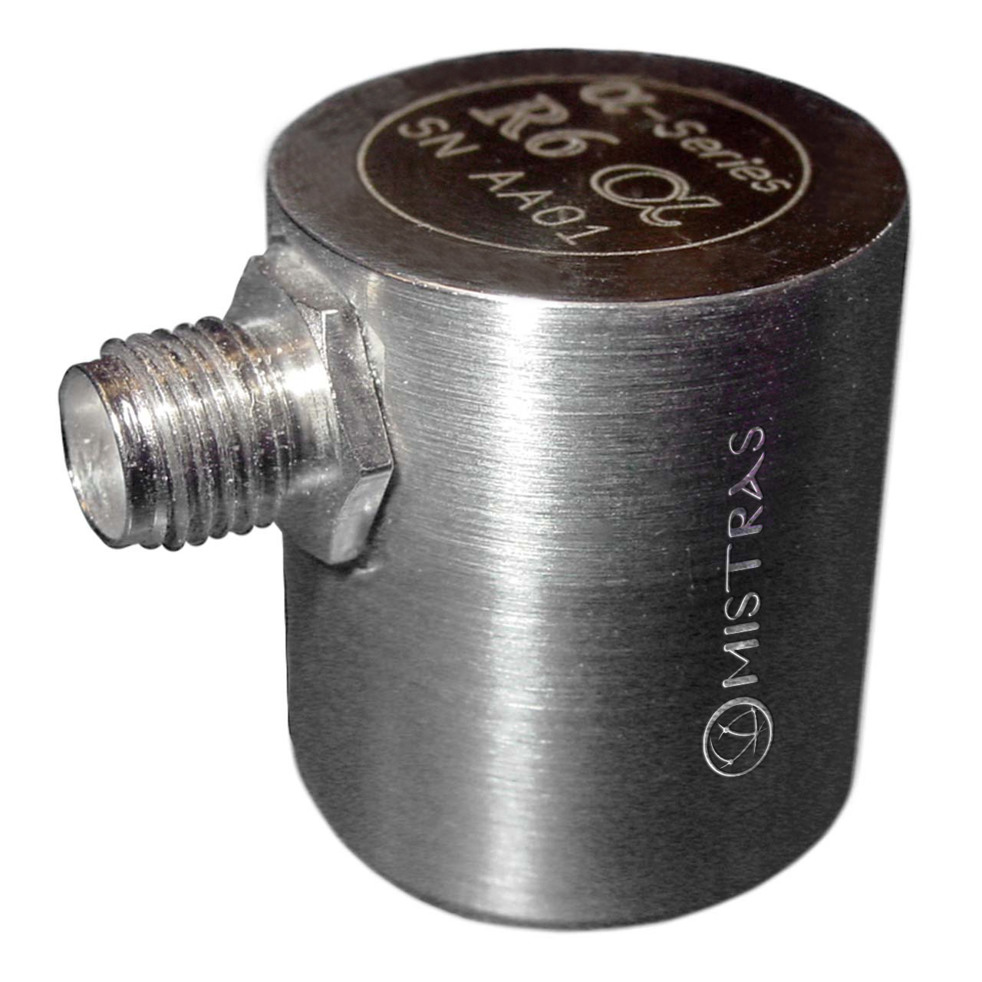

R6a - 60 kHz General Purpose AE Sensor
The R6a is a narrow band resonant sensor with a high sensitivity. The sensor cavity is machined from a solid stainless steel rod, making the sensor extremely rugged and reliable. The ceramic face along with a 30 degree chamfer to cavity electrically isolates the sensor cavity from the structure under test assuring a low noise operation. The compact size of the sensor makes it readily suitable for deploying in tight spaces for monitoring. The Alpha series family of sensors features an SMA connector versus the Microdot connectors found on MISTRAS' RXX series of sensors. The alpha series includes R3a, R6a, R15a, R30a, and WSa sensors.
- High-sensitivity narrow-band resonant AE sensor.
- Rugged solid stainless-steel construction.
- Ceramic face provides electrical isolation and low-noise operation.
- Compact design for tight monitoring spaces.
- Features an SMA connector as part of the Alpha series.
- Dimension Dia. x HT (mm [Inch]): 19x22 [.75x.88]
- Weight (gm): 38
- Operating Temp. (°C): -65 to 175
- Shock Limit (g): 500
- Case Material: Stainless Steel (304)
- Face Material: Ceramic
- Connector Type: SMA
- Connection Location: SIDE
- Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: 75 [-64]
- Operating Freq. Range (kHz): 35-100
- Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: 55 [90]
- Directionality (dB): ±1.5
- Grounding: B
- Seal Type: EPOXY
