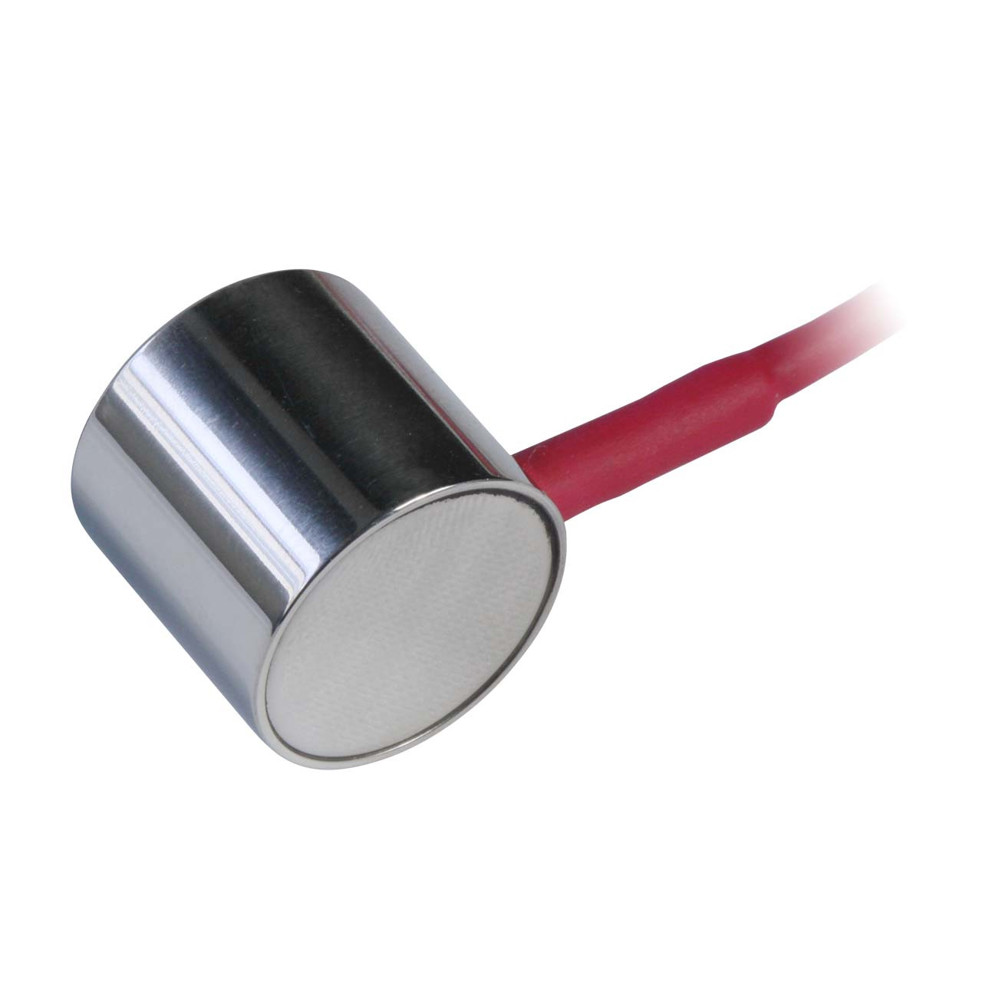

R50S - 500 kHz General Purpose AE Sensor with Integral Coaxial Cable

R50S - 500 kHz General Purpose AE Sensor with Integral Coaxial Cable

R50S is a narrow band sensor with a very high sensitivity. It has a very good frequency response over the range of 50-400 kHz. This sensor is an ideal candidate for applications requiring high sensitivity to AE signals at low frequencies. This sensor features a rugged steel construction with an integrated coaxial cable exiting on the side with a BNC connector. The small size of the sensor makes it particularly suitable for mounting in tight spaces.

  • High-sensitivity narrow-band AE sensor.
  • Provides a 50–400 kHz frequency response.
  • Designed for detecting low-frequency AE signals.
  • Compact for installation in tight spaces.
  • Rugged construction with integrated BNC cable.

  • Dimension Dia. x HT (mm [Inch]): 18x17 [.7x.65]
  • Weight (gm): -
  • Operating Temp. (°C): -65 to 177
  • Shock Limit (g): 500
  • Case Material: Stainless Steel (304)
  • Face Material: Ceramic
  • Connector Type: BNC
  • Connection Location: SIDE
  • Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: 62 [-62]
  • Operating Freq. Range (kHz): 100-700
  • Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: 100 [500]
  • Directionality (dB): ±1.5
  • Grounding: B
  • Seal Type: EPOXY
