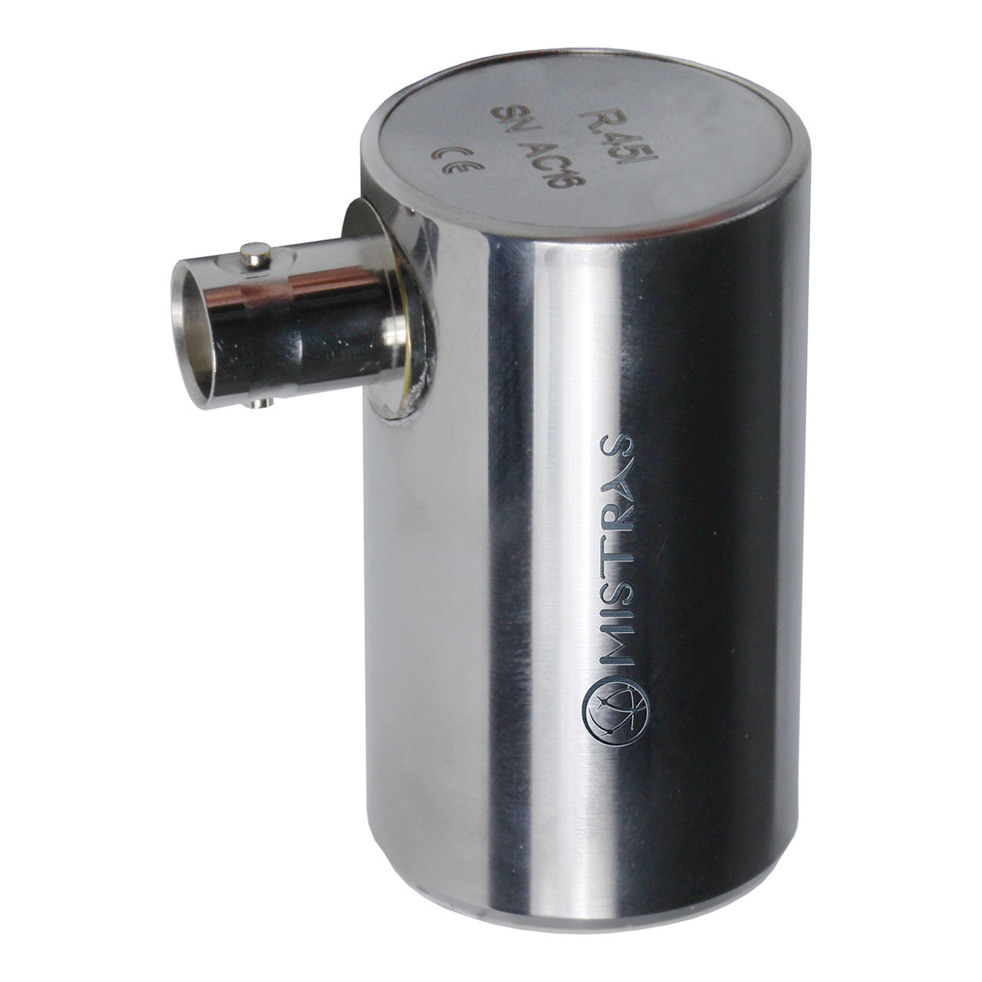

R.45I - Very Low Frequency AE Sensor with Integral Preamp

The R.45I is a very low frequency and High sensitivity, internally amplified AE sensor with a 20 kHz resonance frequency, 124 dB peak sensitivity and useful bandwidth from 1 to 30 kHz. The sensor has a standard BNC connector on the side of the sensor. The cavity is made from Stainless steel. It is approximately 2.0" (50 mm) high. MISTRAS' integral preamp sensors were specifically engineered to attain high sensitivity and have the capability to drive long cables without the need for a separate preamplifier. Incorporating a low-noise input, 40dB preamplifier and a filter all inside the sensor housing, these transducers are completely enclosed in metal stainless steel (or aluminum) housings that are treated to minimize RFI/EMI interference. Care has also been taken to thermally isolate the critical input stage of the preamplifier in order to provide excellent temperature stability over the range of -35° to 75° C. Their integrated Auto Sensor Test (AST*) capability allows these sensors to pulse as well as receive. This feature lets you verify the sensor coupling and performance at any time before, during or after an AE test.
