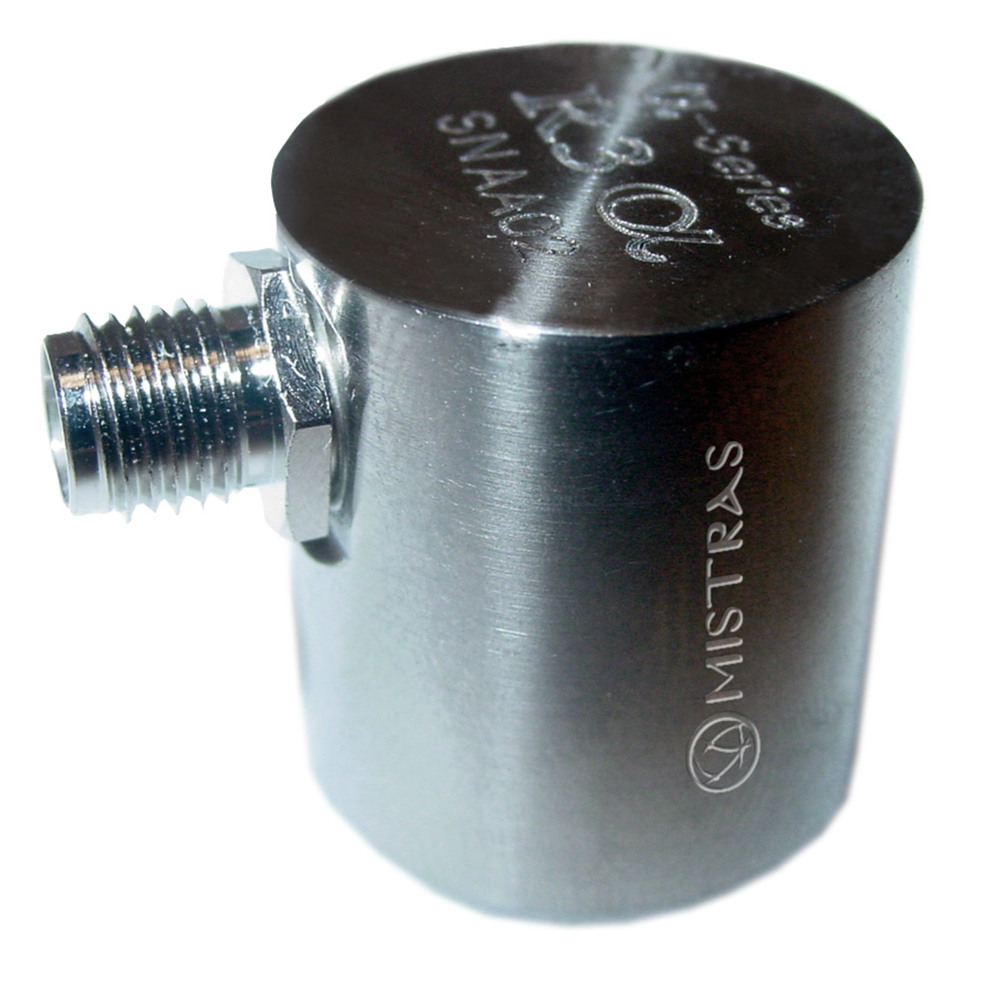

R3a - 30 kHz Low Frequency AE Sensor
The R3a sensor cavity is machined from a solid stainless steel rod, making the sensor extremely rugged and reliable. The ceramic face electrically isolates the sensor from the structure to assure a low noise operation. Most low frequency AE sensors are relatively large. However, the R3a sensor has the same compact size as our other Alpha series sensors and boasts a low frequency, 30 kHz resonant response. This feature makes it extremely useful in tight areas that require a low frequency sensor for testing. The Alpha series family of sensors features SMA connectors versus the Microdot connectors found on MISTRAS' RXX series of passive sensors. The alpha series includes R3a, R6a, R15a, R30a, and WSa sensors.
- Compact low-frequency resonant AE sensor.
- Features a 30 kHz resonant response.
- Designed for tight spaces requiring low-frequency sensing.
- Rugged stainless-steel construction with ceramic electrical isolation.
- Features an SMA connector as part of the Alpha series.
- Dimension Dia. x HT (mm [Inch]): 19x22 [.75x.88]
- Weight (gm): 41
- Operating Temp. (°C): -65 to 175
- Shock Limit (g): 500
- Case Material: Stainless Steel (304)
- Face Material: Ceramic
- Connector Type: SMA
- Connection Location: SIDE
- Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: 80 [-63]
- Operating Freq. Range (kHz): 25-70
- Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: 29
- Directionality (dB): ±1.5
- Grounding: B
- Seal Type: EPOXY
