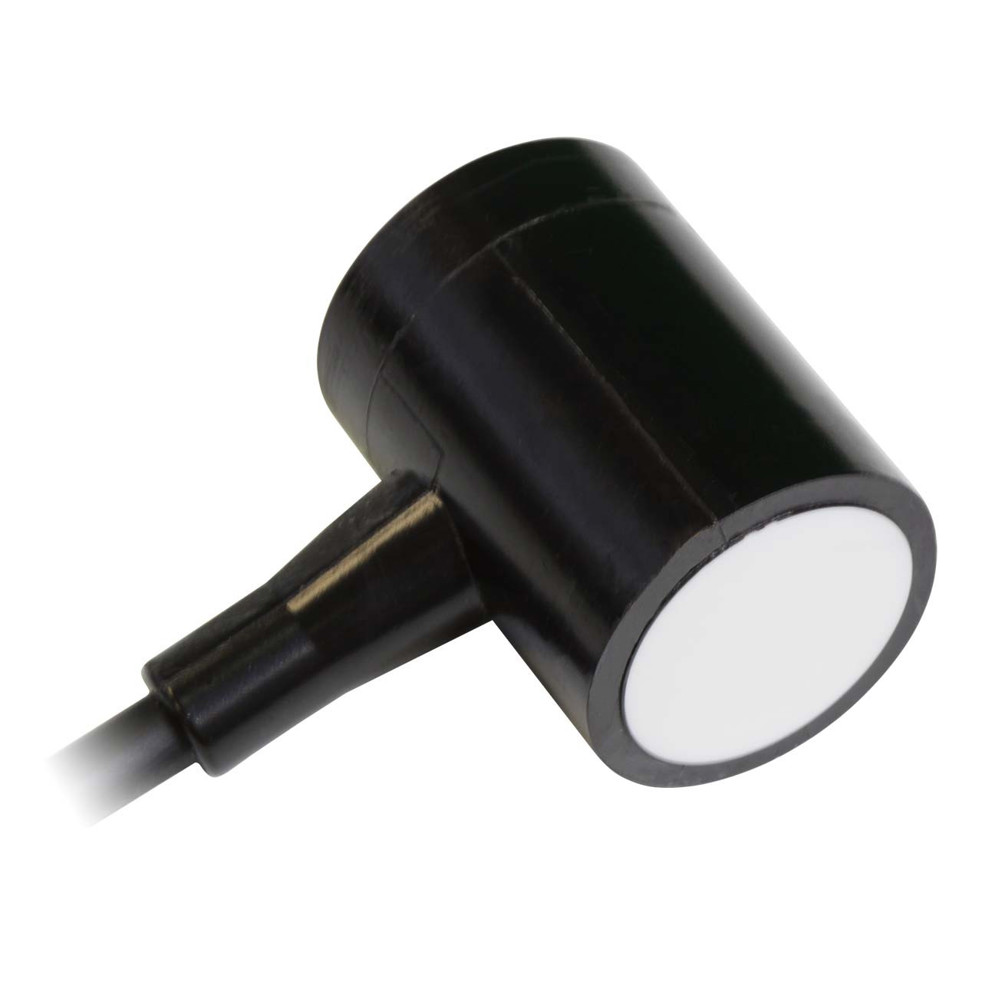

R30I-UC - 300 kHz Integral Preamp Epoxy Coated Underwater AE Sensor with Integral Preamp

R30I-UC - 300 kHz Integral Preamp Epoxy Coated Underwater AE Sensor with Integral Preamp

R30I-UC is an underwater sensor with integrated preamplifier. It is a narrowband sensor with very high sensitivity featuring an integral preamplifier with a gain of 40 dB. The integrated electronics give the sensor a signal-to-drive capability for depths of 300 meters (1000 ft) or more. The sensors feature special polymer coatings making it 100% insulated and non conductive with an integral waterproof cable for underwater use. The sensor is tested to depths of 1000 psi.

  • High-sensitivity narrow-band AE sensor for underwater use.
  • Features an integral 40 dB preamplifier.
  • Supports operation at depths of 300 metres or more.
  • Fully insulated and non-conductive.
  • Tested to 1000 psi.

  • Dimension Dia. x HT (mm [Inch]): 33x35 [1.31x1.38]
  • Weight (gm): -
  • Operating Temp. (°C): -30 to 65
  • Shock Limit (g): 500
  • Case Material: Stainless Steel/Epoxy
  • Face Material: Ceramic
  • Connector Type: BNC
  • Connection Location: SIDE
  • Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: 98 [-24]
  • Operating Freq. Range (kHz): 125-450
  • Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: 225 [350]
  • Directionality (dB): ±1.5
  • Grounding: B
  • Seal Type: EPOXY
