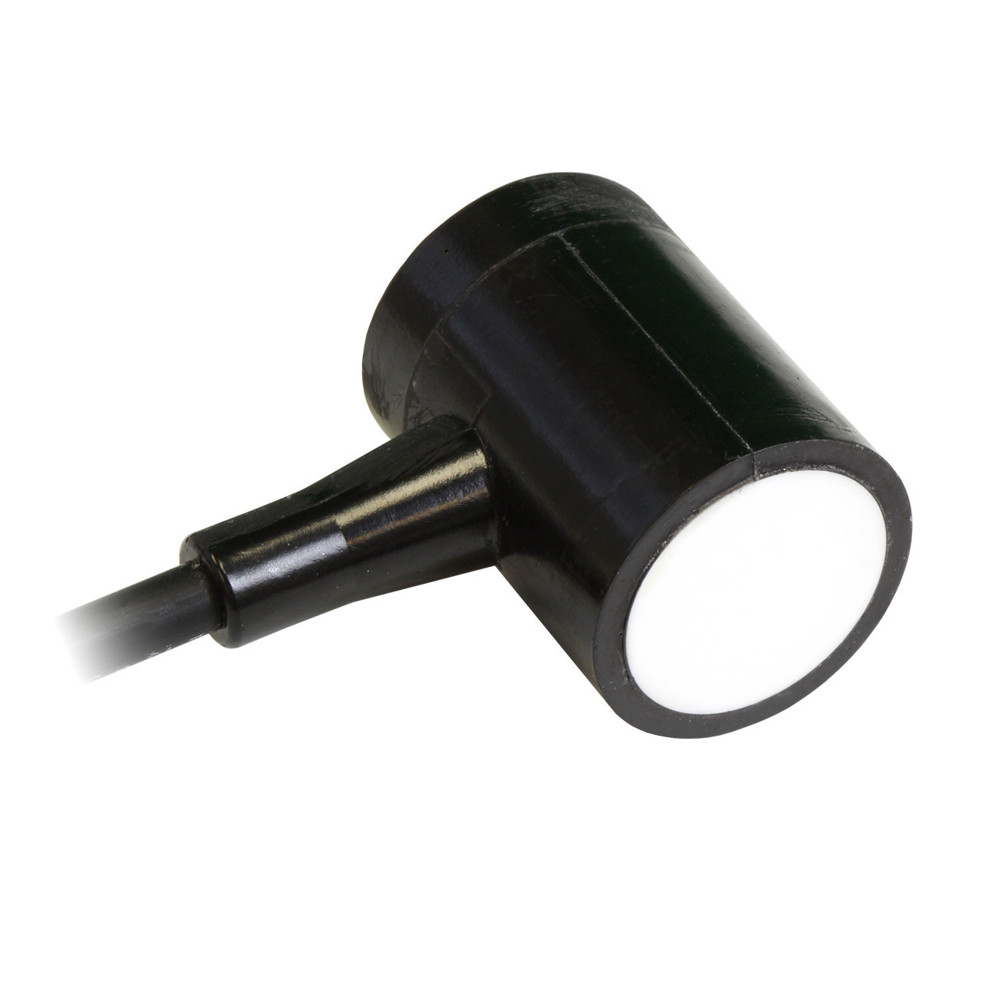

R15I-UC & R15-UC - 50-400 kHz Epoxy Coated Underwater AE Sensor with Integral Preamp
R15I-UC is an underwater, narrowband sensor with very high sensitivity in the frequency bandwidth 50 – 400 kHz. The sensor features an integral preamplifier with 40 dB gain. The integrated electronics give the sensor a signal-to-drive capability for depths of 300 meters (1000ft) or more. The sensors feature special polymer coatings making it 100% insulated and non conductive with an integral neoprene jacketed waterproof cable for underwater use. The sensor is tested to depths of 1000 psi.
- High-sensitivity narrow-band AE sensor for underwater use.
- Covers a 50–400 kHz frequency bandwidth.
- Features an integral 40 dB preamplifier.
- Supports operation at depths of 300 metres or more.
- Fully insulated and tested to 1000 psi.
- Dimension Dia. x HT (mm [Inch]): 33x35 [1.31x1.38]
- Weight (gm): -
- Operating Temp. (°C): -30 to 65
- Shock Limit (g): 500
- Case Material: Stainless Steel/Epoxy
- Face Material: Ceramic
- Connector Type: BNC
- Connection Location: SIDE
- Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: 108 [-24]
- Operating Freq. Range (kHz): 50-200
- Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: 75 [150]
- Directionality (dB): ±1.5
- Grounding: B
- Seal Type: EPOXY
