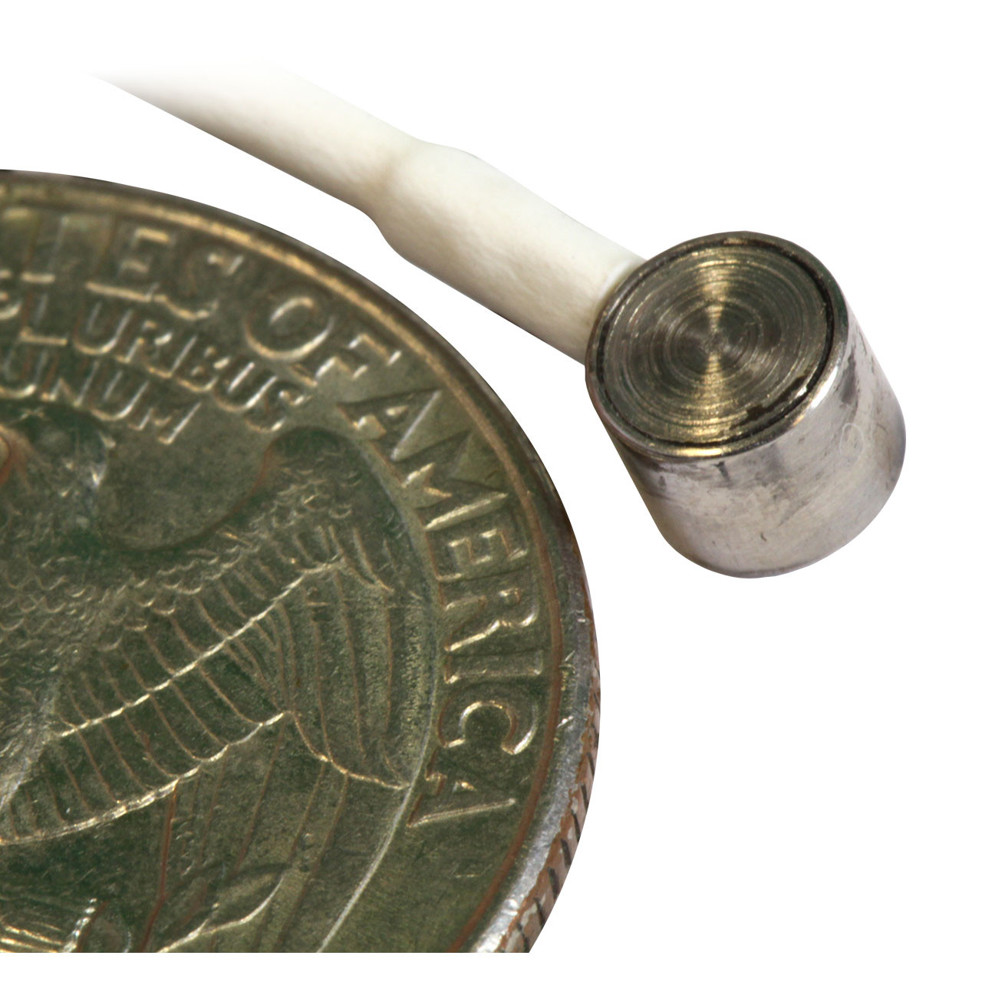

PICO HF-1.2 - 500-1850 kHz Lightweight Miniature AE Sensor with Integral Coaxial Cable
The PICO HF-1.2 is a micro-miniature sensor with a wide-band and relatively flat frequency response over the range of 500-1850 kHz. Its small size makes the sensor an ideal candidate for computer hard disk examination and other applications requiring very small size, low weight and wideband AE sensor response. A small diameter, integral coax cable exits from the side of the sensor with a BNC connector on the other end.
- Micro-miniature wideband AE sensor.
- Flat frequency response from 500–1850 kHz.
- Designed for very small, lightweight applications.
- Suitable for computer hard disk examination.
- Includes an integral coaxial cable with BNC connector.
- Dimension Dia. x HT (mm [Inch]): 5x4 [.2x.15]
- Weight (gm): 0.1
- Operating Temp. (°C): -65 to 177
- Shock Limit (g): 500
- Case Material: Stainless Steel (304)
- Face Material: Ceramic
- Connector Type: BNC
- Connection Location: SIDE
- Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: [-72]
- Operating Freq. Range (kHz): 500-1850
- Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: [600]
- Directionality (dB): ±1.5
- Grounding: B
- Seal Type: EPOXY
