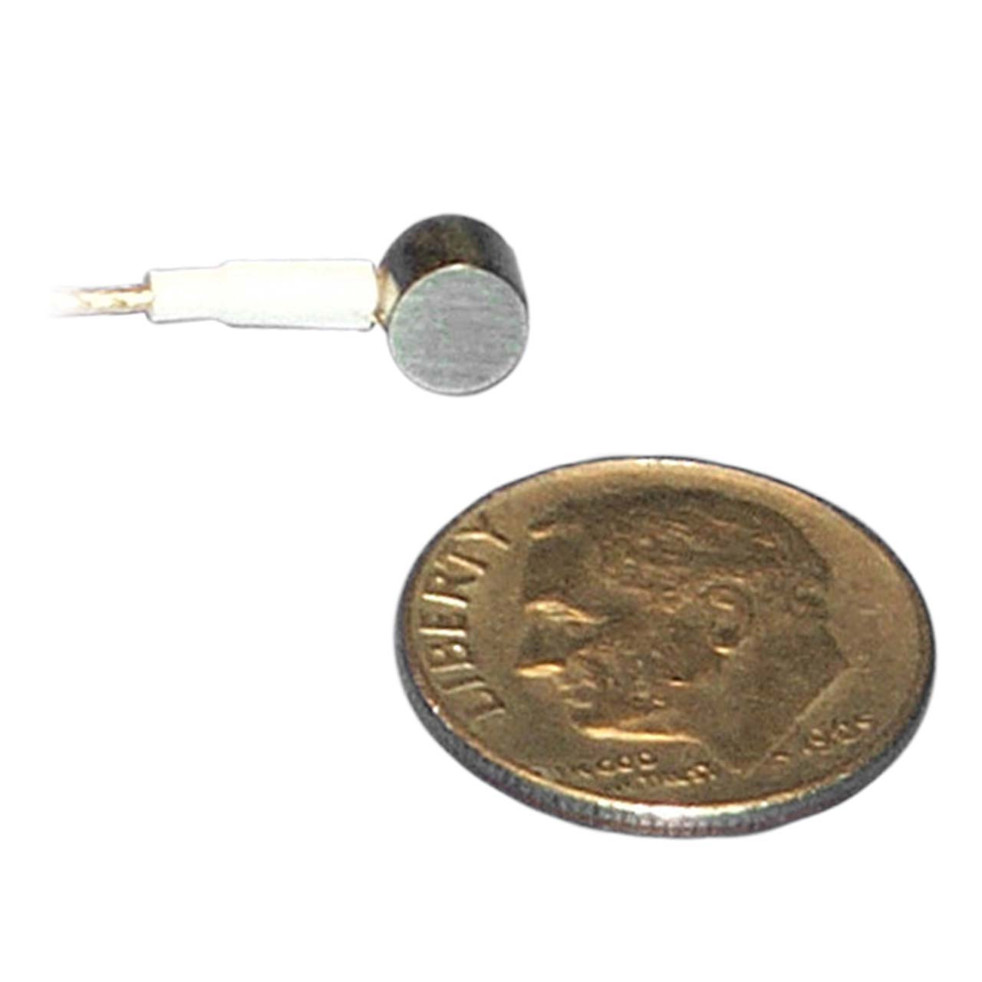

PICO - 200-750 kHz Lightweight Miniature AE Sensor with Integral Coaxial Cable
PICO sensor has a good bandwidth and very high sensitivity to AE signals. Its small size makes the sensor an ideal candidate for applications requiring a low profile sensor with negligible weight. The sensor features a small diameter, integral coax cable exiting from the side of the sensor with a BNC connector on the end.
- Compact AE sensor with high sensitivity.
- Provides good bandwidth for AE signal detection.
- Low-profile and lightweight for space-constrained applications.
- Suitable where minimal sensor weight is required.
- Includes an integral coaxial cable with BNC connector.
- Dimension Dia. x HT (mm [Inch]): 5x4 [.2x.15]
- Weight (gm): -
- Operating Temp. (°C): -65 to 177
- Shock Limit (g): 500
- Case Material: Stainless Steel (304)
- Face Material: Ceramic
- Connector Type: BNC
- Connection Location: SIDE(3)
- Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: 54 [-68]
- Operating Freq. Range (kHz): 200-750
- Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: 250 [500]
- Directionality (dB): ±1.5
- Grounding: B
- Seal Type: EPOXY
