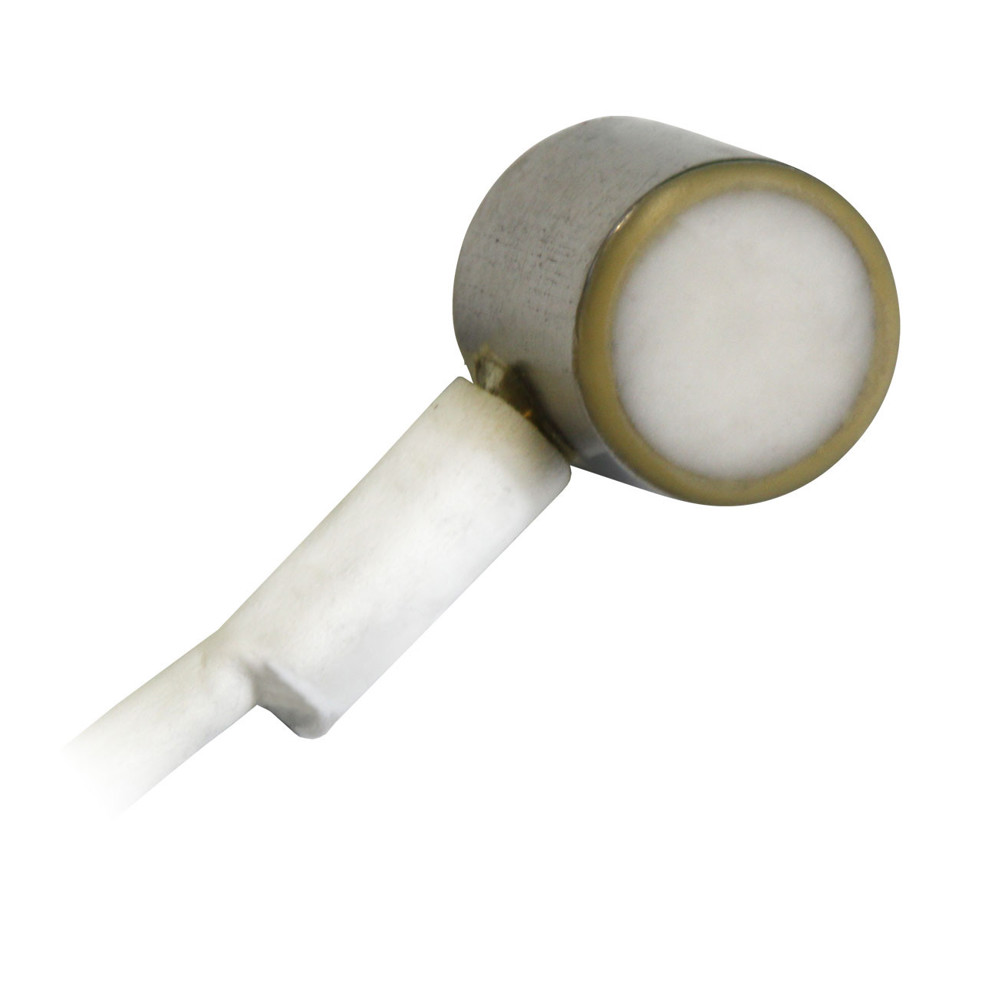

Nano30 - 150-750 kHz Miniature AE Sensor with Integral Coaxial Cable
The Nano-30 miniature AE sensor has a resonant response at 300Khz and a good frequency response over the range of 125 – 750 kHz. Its size makes the sensor an ideal candidate for applications where small size is important. The sensor features a small, 1 meter, integral coax cable, which exits from the side of the sensor with a BNC connector on the end.
- Miniature resonant AE sensor.
- Features a 300 kHz resonant response.
- Provides a 125–750 kHz frequency response.
- Designed for applications where small sensor size is important.
- Includes a one-metre integral coaxial cable with BNC connector.
- Dimension Dia. x HT (mm [Inch]): 8x8 [0.3x0.3]
- Weight (gm): 2
- Operating Temp. (°C): -65 to 177
- Shock Limit (g): 500
- Case Material: Stainless Steel (304)
- Face Material: Ceramic
- Connector Type: BNC
- Connection Location: SIDE(3)
- Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: 62 [-72]
- Operating Freq. Range (kHz): 150-400
- Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: 140 [300]
- Directionality (dB): ±1.5
- Grounding: B
- Seal Type: EPOXY
