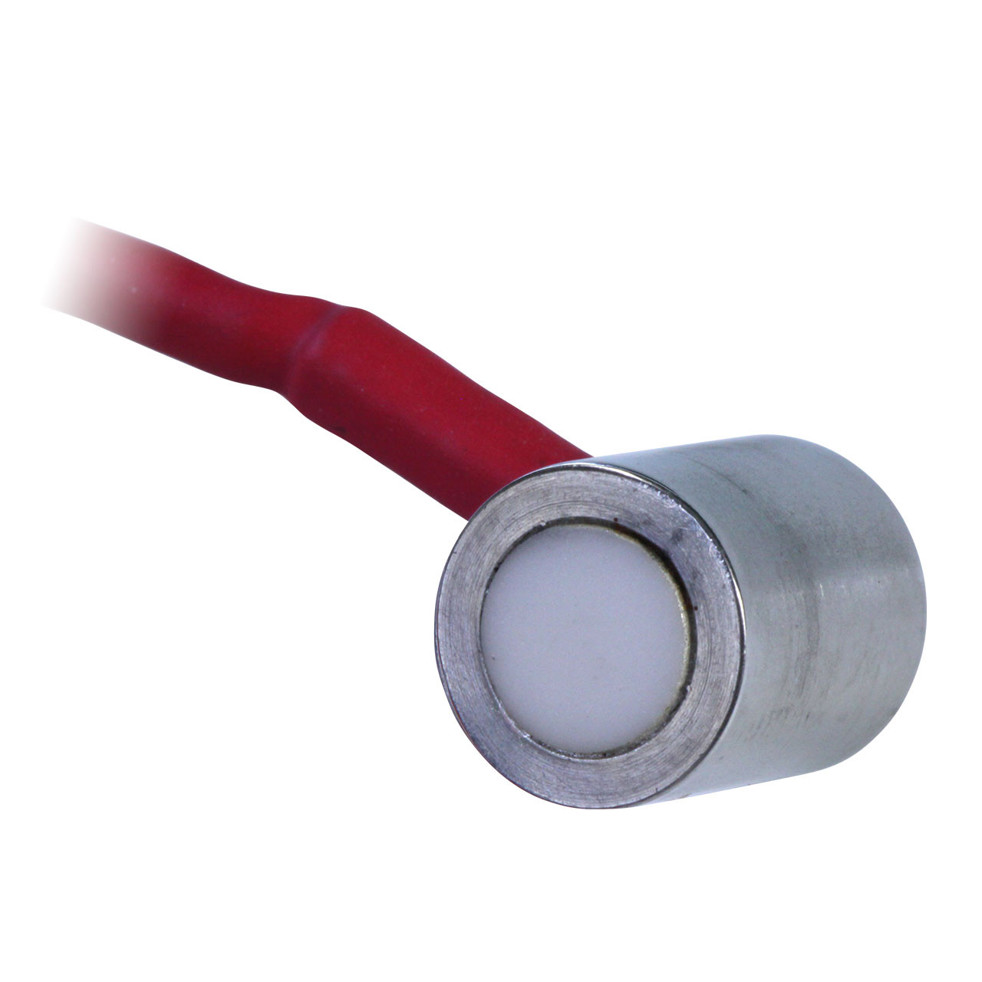

Mini30S - 270-970 kHz Miniature AE Sensor with Integral Coaxial Cable
Mini-30S sensor features a rugged stainless steel cavity with an integrated cable. Its small size and high bandwidth makes the sensor an ideal candidate for applications where high fidelity AE signals from multiple modes are a necessity. The sensor features a small diameter, a BNC connector at the end of a coaxial cable exiting from the side of the sensor.
- Compact AE sensor with rugged stainless-steel construction.
- Designed for high-fidelity signals from multiple AE modes.
- Combines small size with high bandwidth.
- Suitable for applications requiring detailed signal capture.
- Includes an integrated coaxial cable with BNC connector.
- Dimension Dia. x HT (mm [Inch]): 10x12 [.4x.5]
- Weight (gm): 6
- Operating Temp. (°C): -65 to 177
- Shock Limit (g): 500
- Case Material: Stainless Steel (304)
- Face Material: Ceramic
- Connector Type: BNC
- Connection Location: SIDE
- Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: 62 [-65]
- Operating Freq. Range (kHz): 270-970
- Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: 325
- Directionality (dB): ±1.5
- Grounding: -
- Seal Type: -
