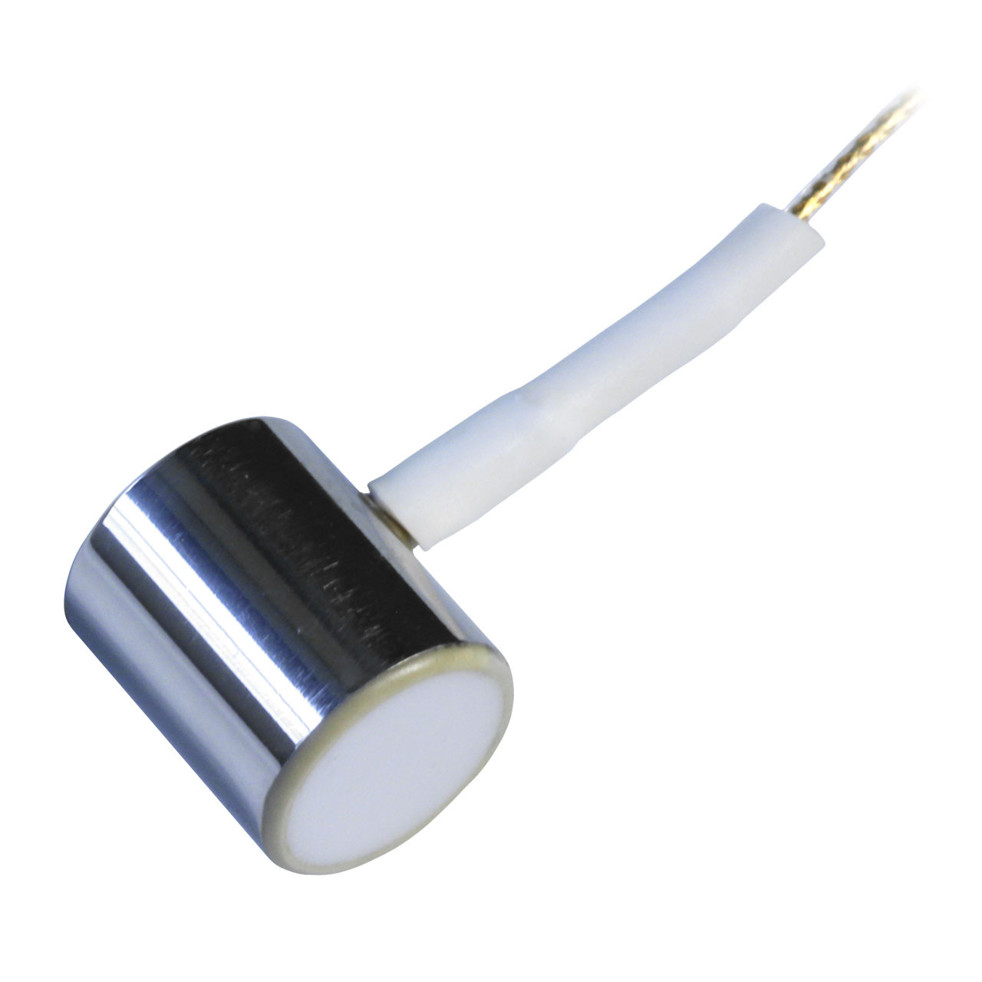

Micro200HF - 500-4500 kHz Wideband Miniature AE Sensor
MICRO-200HF sensor has a good frequency response over the range of 500 – 4500 kHz. Its small size and high bandwidth makes the sensor an ideal candidate for applications where high fidelity AE signals from multiple modes are a necessity. The sensor features a small diameter, microdot connector exiting from the side of the sensor.
- Compact, high-bandwidth AE sensor.
- Covers a frequency range of 500–4500 kHz.
- Designed for high-fidelity capture of multiple AE modes.
- Suitable where small size and wide bandwidth are important.
- Features a Microdot connector.
- Dimension Dia. x HT (mm [Inch]): 10x12 [.4x.5]
- Weight (gm): 5
- Operating Temp. (°C): -65 to 177
- Shock Limit (g): 500
- Case Material: Stainless Steel (304)
- Face Material: Ceramic
- Connector Type: BNC
- Connection Location: SIDE
- Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: 62 [-72]
- Operating Freq. Range (kHz): 500-4500
- Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: 2500
- Directionality (dB): ±1.5
- Grounding: B
- Seal Type: EPOXY
