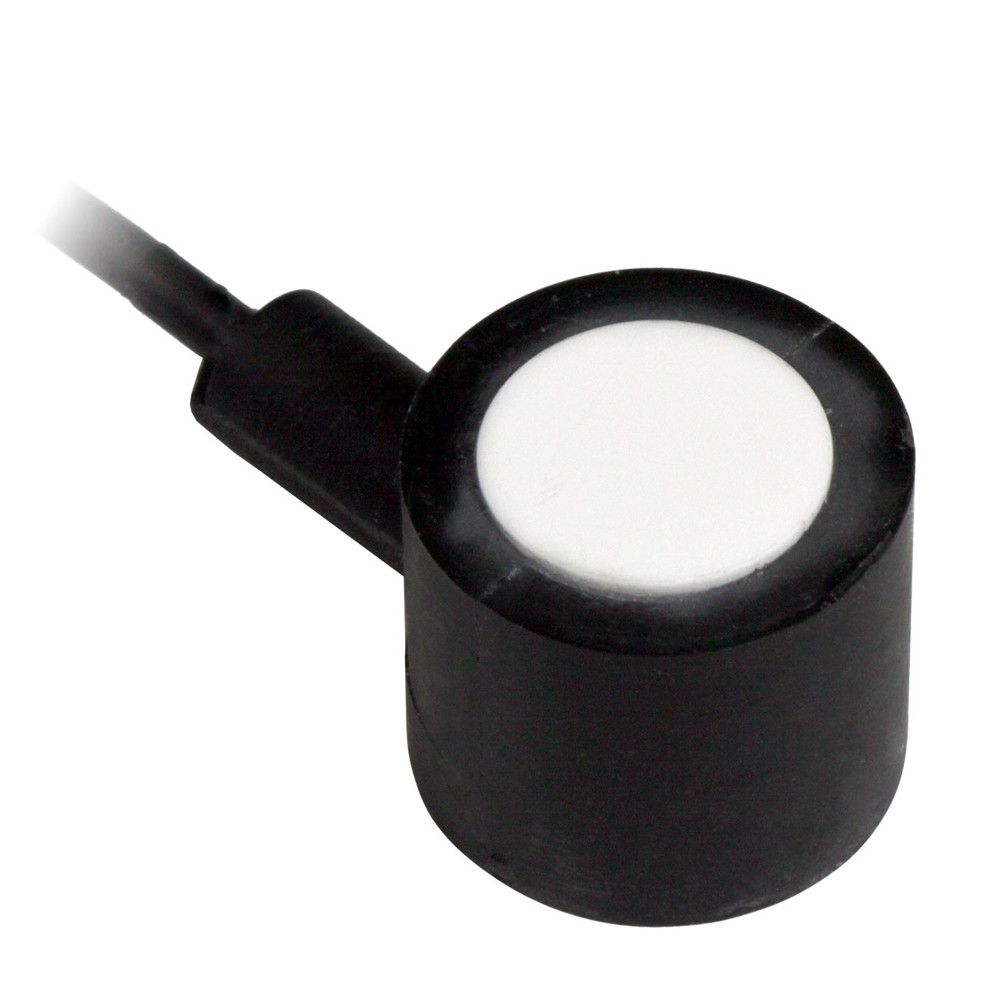

ISR6 - 60 kHz Intrinsically Safe AE Sensor with Integral Coaxial Cable
The ISR6 sensor was designed specially to meet Intrinsic Safety (IS) and IP65 environmental requirements. Certified as Intrinsically Safe (IS) for use with our 1278 IS ASL-C subsystem, this sensor has a thicker ceramic wear-plate and an epoxy coating completely covering the sensor and cable exit. An IS voltage protection circuit is built into the sensor. It has an integrated one-meter long differential cable with extruded TPE jacket and a pigtail for connecting into a 1278 IS Subsystem. The sensor has similar frequency response as the R6 sensor. Its maximum operating temperature is 125°C.
- Resonant AE sensor for intrinsically safe applications.
- Meets Intrinsic Safety and IP65 requirements.
- Includes voltage protection and an integrated differential cable.
- Designed for use with the 1278 IS subsystem.
- Operates at temperatures up to 125°C.
- Dimension Dia. x HT (mm [Inch]): 23x19 [.89x.76]
- Weight (gm): 33
- Operating Temp. (°C): -45 to 125
- Shock Limit (g): 1000
- Case Material: Stainless Steel/Epoxy
- Face Material: Ceramic
- Connector Type: Pigtail
- Connection Location: SIDE
- Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: 76 [-63]
- Operating Freq. Range (kHz): 35-80
- Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: 50 [85]
- Directionality (dB): ±1.5
- Grounding: B
- Seal Type: EPOXY
