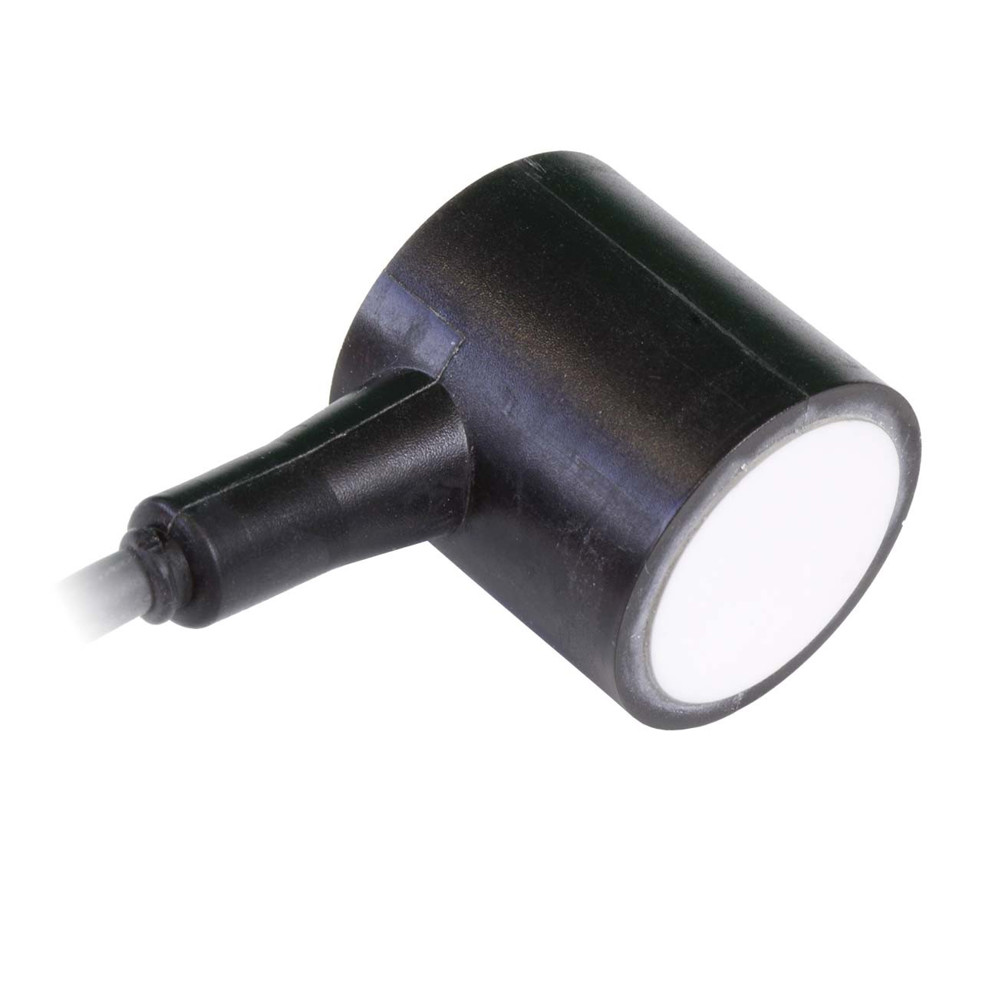

ISR3CA-HT - 30 kHz Intrinsically Safe AE Sensor with Integral Coaxial Cable
The ISR3CA-HT sensor is a low frequency, resonant, acoustic emission sensor with an integral cable. It is designed to meet the intrinsic safety (IS) and IP66 sealing requirements and can operate continuously at very high temperatures. The special polymer coatings on the sensor along with an integral cable make it 100% insulated and non-conductive. The sensor can be used to temperatures of 150 C.
- Low-frequency resonant AE sensor for intrinsically safe applications.
- Meets IP66 sealing requirements.
- Designed for continuous high-temperature operation.
- Fully insulated and non-conductive.
- Operates at temperatures up to 150°C.
- Dimension Dia. x HT (mm [Inch]): 33x36 [1.3x1.4]
- Weight (gm): 50
- Operating Temp. (°C): -40 to 150
- Shock Limit (g): 500
- Case Material: Stainless Steel
- Face Material: Ceramic
- Connector Type: BNC
- Connection Location: SIDE
- Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: 72
- Operating Freq. Range (kHz): 10-100
- Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: 30
- Directionality (dB): ±1.5
- Grounding: -
- Seal Type: EPOXY
Certifications
- Ex ia IIC T4, -55°C ≤ Ta ≤ 120°C
- Ex ia IIIC T135°C, -55°C ≤ Ta ≤ 120°C
- Ex ia IIC T3, -55°C ≤ Ta ≤ 150°C
- Ex ia IIIC T200°C, -55°C ≤ Ta ≤ 150°C
- ATEX Examination Certificate
- IECEx DNV 08.0003X
