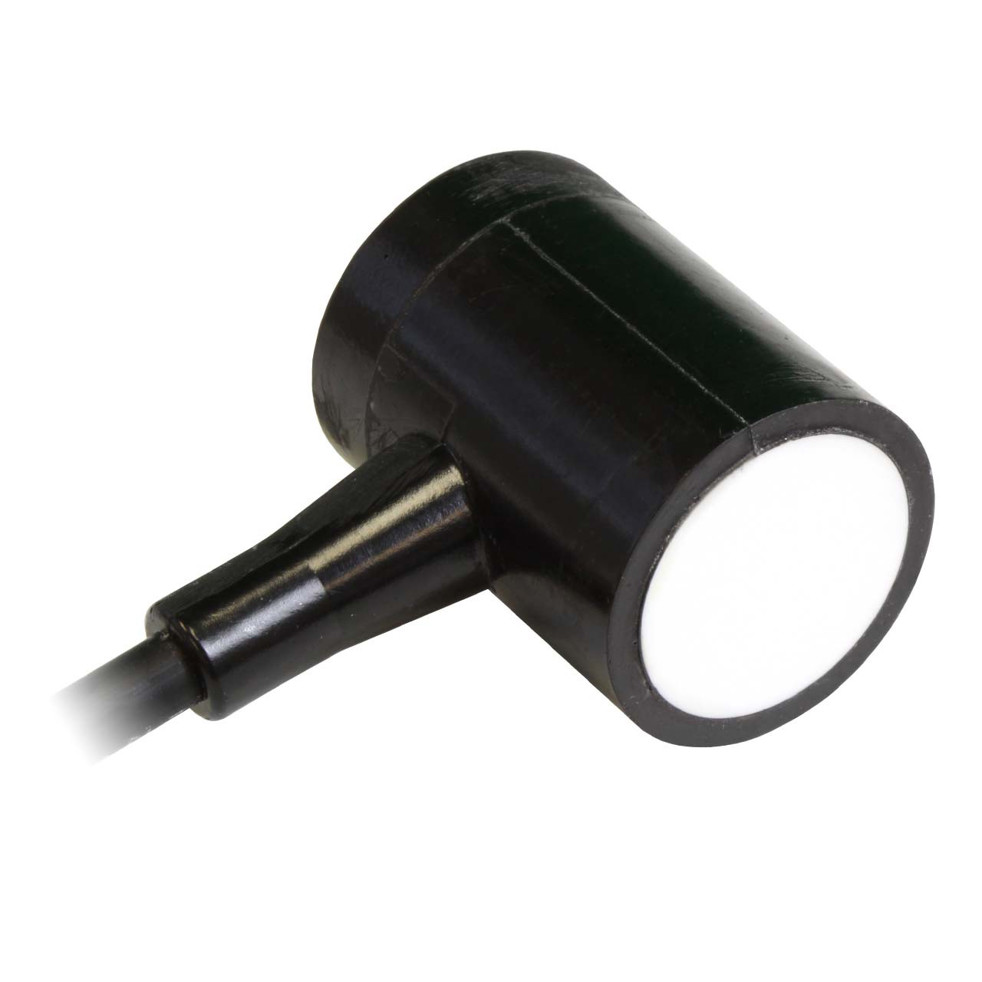

ISPK15IUC - 150 kHz Intrinsically Safe AE Sensor with Low-Power Integral Preamp

ISPK15IUC - 150 kHz Intrinsically Safe AE Sensor with Low-Power Integral Preamp

The ISPK15IUC is a medium frequency, resonant acoustic emission sensor with an integral cable. It is designed to meet the intrinsic safety (IS) requirements and can operate in underwater conditions. The sensor features a 26 dB low power, low noise preamplifier that can drive up to 200 meters of cable. The special polymer coatings on the sensor along with an integral waterproof cable make it 100% insulated and non-conductive. The sensor can be used to depths of 1000 psi.

  • Medium-frequency resonant AE sensor for intrinsically safe applications.
  • Designed for underwater operation.
  • Includes a low-power, low-noise 26 dB preamplifier.
  • Can drive cables up to 200 metres.
  • Waterproof, insulated design rated to 1000 psi.

  • Dimension Dia. x HT (mm [Inch]): 33x45 [1.31x1.75]
  • Weight (gm): 98
  • Operating Temp. (°C): -40 to 70
  • Shock Limit (g): 500
  • Case Material: Stainless Steel
  • Face Material: Ceramic
  • Connector Type: BNC
  • Connection Location: SIDE
  • Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: 94 [-37]
  • Operating Freq. Range (kHz): 50-400
  • Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: 75 [150]
  • Directionality (dB): ±1.5
  • Grounding: -
  • Seal Type: EPOXY

Certifications
