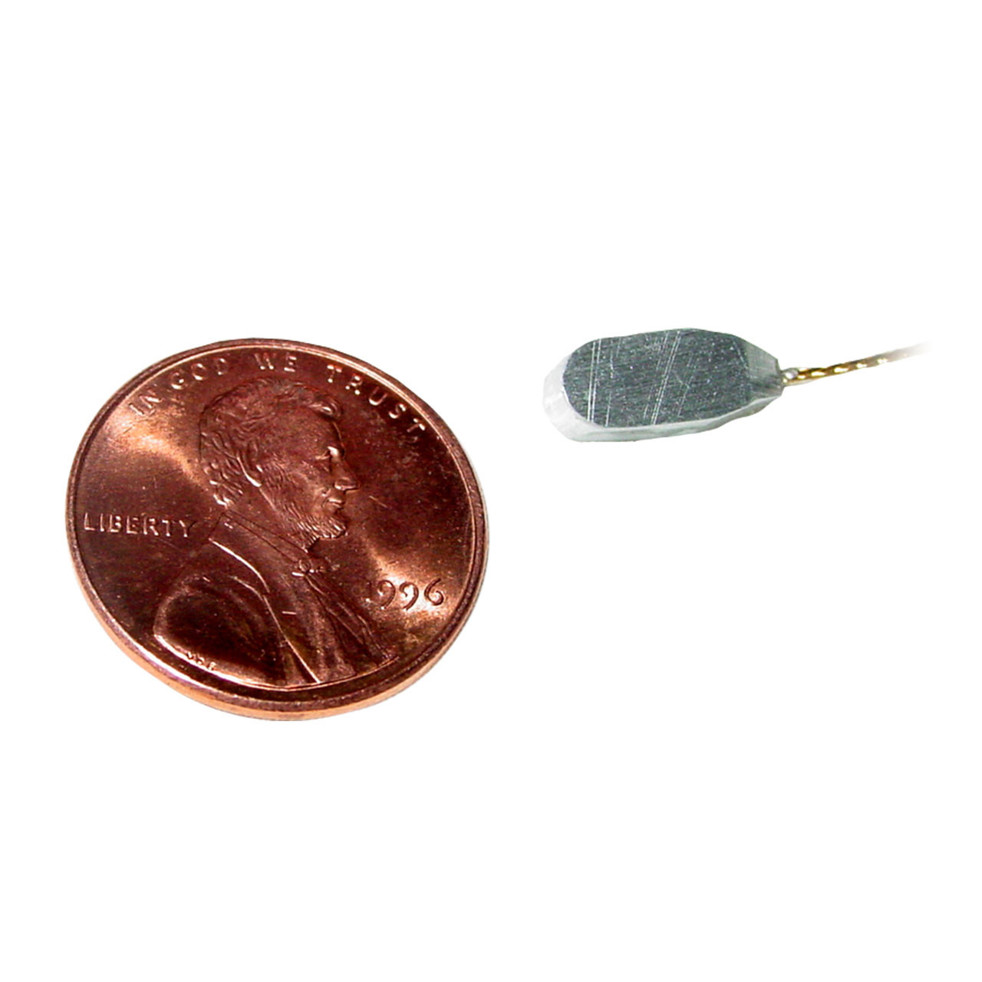

HD2WD - 330-1850 kHz Wideband Miniature AE Sensor
The HD2WD miniature sensor has a very wideband and flat frequency response over the range of 250-1600 kHz. Its small size makes the sensor an ideal candidate for computer hard disk examination and other applications requiring a small, wideband AE sensor response. A small diameter, integral coax cable exits from the side of the sensor with a BNC connector on the end.
- Miniature AE sensor with a wideband response.
- Covers frequencies from 250–1600 kHz.
- Designed for applications requiring a small sensor footprint.
- Suitable for computer hard disk examination.
- Includes an integral coaxial cable with BNC connector.
- Dimension Dia. x HT (mm [Inch]): 5x4x11 [.18x.14x.44]
- Weight (gm): -
- Operating Temp. (°C): -65 to 125
- Shock Limit (g): 500
- Case Material: Anodized Aluminum
- Face Material: Anodized Aluminum
- Connector Type: BNC or SMA
- Connection Location: SIDE
- Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: [-70]
- Operating Freq. Range (kHz): 330-1850
- Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: N/A
- Directionality (dB): N/A
- Grounding: A
- Seal Type: EPOXY
