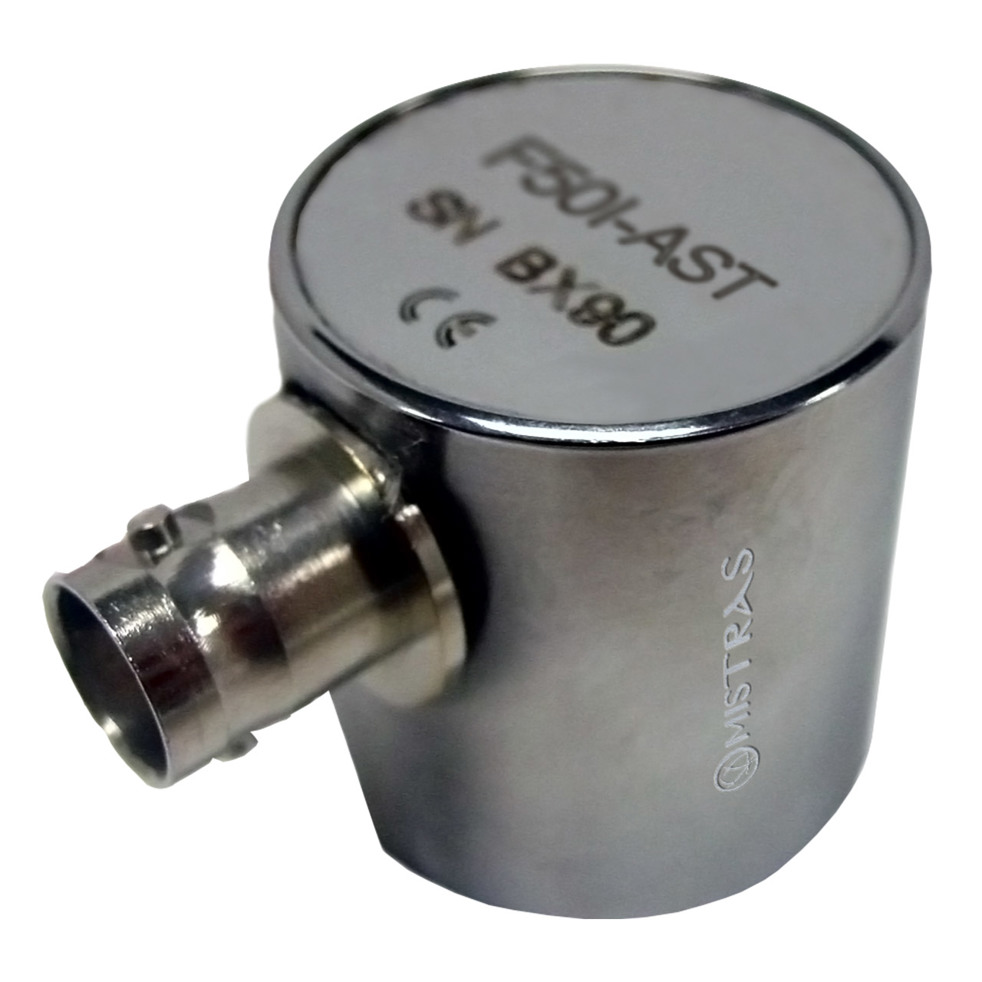

F50I-AST - 200-800 kHz High-Sensitivity Flat Frequency Response AE Sensor

F50I-AST - 200-800 kHz High-Sensitivity Flat Frequency Response AE Sensor

The F-series sensors are designed to incorporate the latest advances in materials and transducer design principles. These sensors unlike the resonant sensors (R-series) have a very high sensitivity and flat response in the bandwidth of operation. The F50I is an integral preamplifier wideband sensor with a flat frequency response over the range of 200-800 kHz. This sensor is an ideal candidate for applications requiring high bandwidth for frequency analysis of the AE signals for noise discrimination and source identification. This sensor features a rugged steel construction and an BNC connector exiting from the side of the sensor.

  • Wideband AE sensor with an integral preamplifier.
  • Flat frequency response from 200–800 kHz.
  • Supports high-bandwidth frequency analysis.
  • Designed for noise discrimination and source identification.
  • Rugged steel construction with a BNC connector.

  • Dimension Dia. x HT (mm [Inch]): 28.5x31.4 [1.125x1.235]
  • Weight (gm): 70
  • Operating Temp. (°C): -35 to 75
  • Shock Limit (g): 500
  • Case Material: Stainless Steel (304)
  • Face Material: Ceramic
  • Connector Type: BNC
  • Connection Location: SIDE
  • Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: 96 [-25]
  • Operating Freq. Range (kHz): 200-800
  • Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: 100
  • Directionality (dB): ±1.5
  • Grounding: -
  • Seal Type: EPOXY
