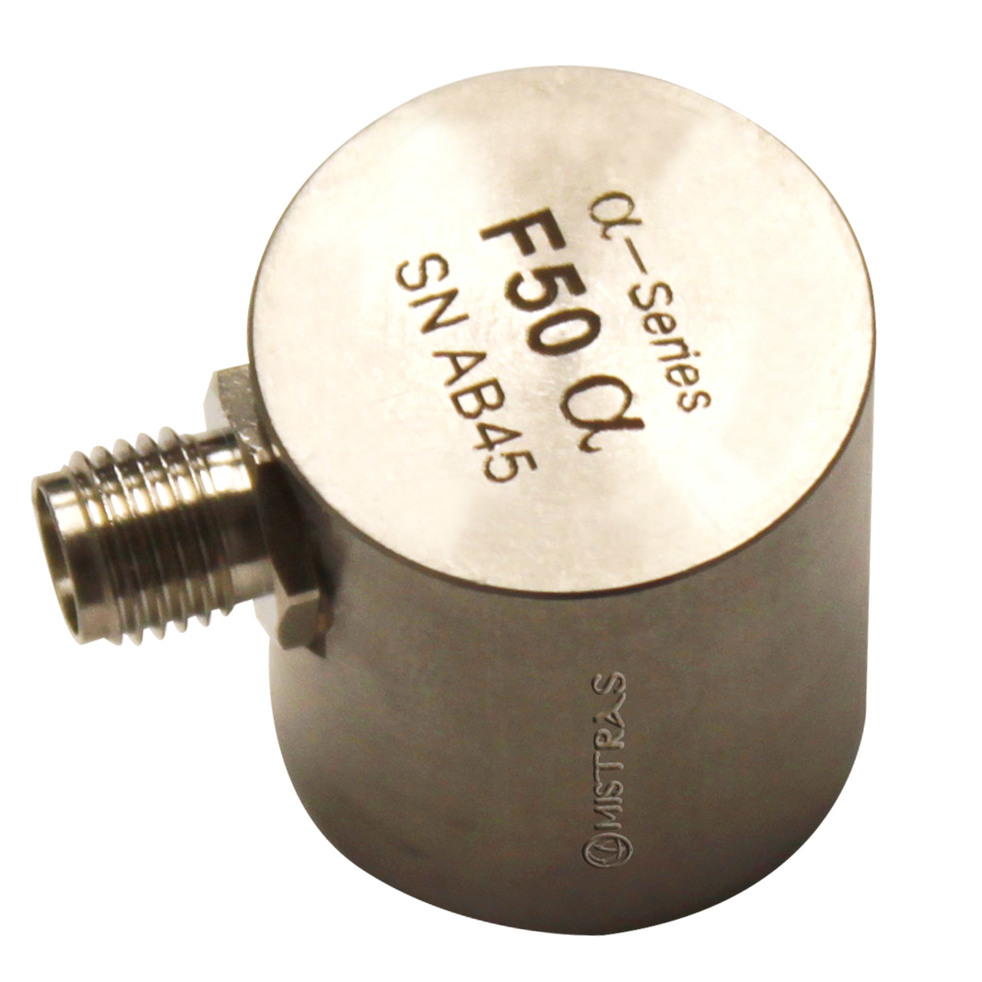

F50a - 200-800 kHz High-Sensitivity Flat Frequency Response AE Sensor

F50a - 200-800 kHz High-Sensitivity Flat Frequency Response AE Sensor

The F-series sensors are designed to incorporate the latest advances in materials and transducer design principles. These sensors unlike the resonant sensors (R-series) have a very high sensitivity and flat response in the bandwidth of operation. The F50A is a wideband sensor with a flat frequency response over the range of 200-800 kHz. This sensor is an ideal candidate for applications requiring high bandwidth for frequency analysis of the AE signals for noise discrimination and source identification. This sensor features a rugged steel construction and an SMA connector exiting from the side of the sensor.

  • Wideband AE sensor with a flat 200–800 kHz response.
  • Provides high sensitivity across its operating bandwidth.
  • Supports detailed frequency analysis.
  • Helps discriminate noise and identify signal sources.
  • Rugged steel construction with an SMA connector.

  • Dimension Dia. x HT (mm [Inch]): 19x21.6 [.75x.85]
  • Weight (gm): 34
  • Operating Temp. (°C): -65 to 177
  • Shock Limit (g): 500
  • Case Material: Stainless Steel (304)
  • Face Material: Ceramic
  • Connector Type: SMA
  • Connection Location: SIDE
  • Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: 65 [-65]
  • Operating Freq. Range (kHz): 200-800
  • Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: 100
  • Directionality (dB): ±1.5
  • Grounding: B
  • Seal Type: EPOXY
