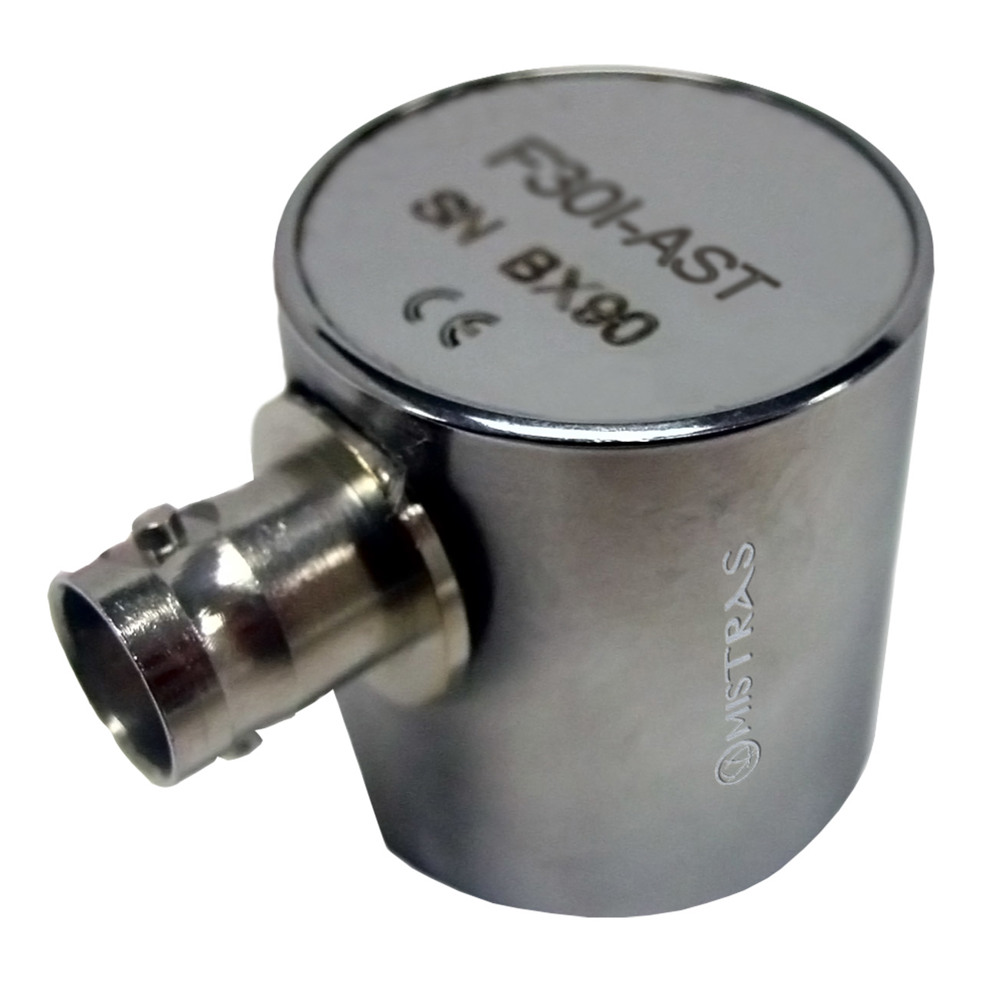

F30I-AST - 150-750 kHz High-Sensitivity Flat Frequency Response AE Sensor
The F-series sensors are designed to incorporate the latest advances in materials and transducer design principles. These sensors unlike the resonant sensors (R-series) have a very high sensitivity and flat response in the bandwidth of operation. The F30I is an integral preamplifier wideband sensor with a flat frequency response over the range of 150-700 kHz. This sensor is an ideal candidate for applications requiring high bandwidth for frequency analysis of the AE signals for noise discrimination and source identification. This sensor features a rugged steel construction and an BNC connector exiting from the side of the sensor.
- Wideband AE sensor with an integral preamplifier.
- Flat frequency response from 150–700 kHz.
- Designed for high-bandwidth frequency analysis.
- Supports noise discrimination and source identification.
- Rugged steel construction with a BNC connector.
- Dimension Dia. x HT (mm [Inch]): 28.5x31.8 [1.125x1.25]
- Weight (gm): 70
- Operating Temp. (°C): -35 to 75
- Shock Limit (g): 500
- Case Material: Stainless Steel (304)
- Face Material: Ceramic
- Connector Type: BNC
- Connection Location: SIDE
- Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: 98 [-23]
- Operating Freq. Range (kHz): 150-700
- Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: 300 [300]
- Directionality (dB): ±1.5
- Grounding: -
- Seal Type: EPOXY
