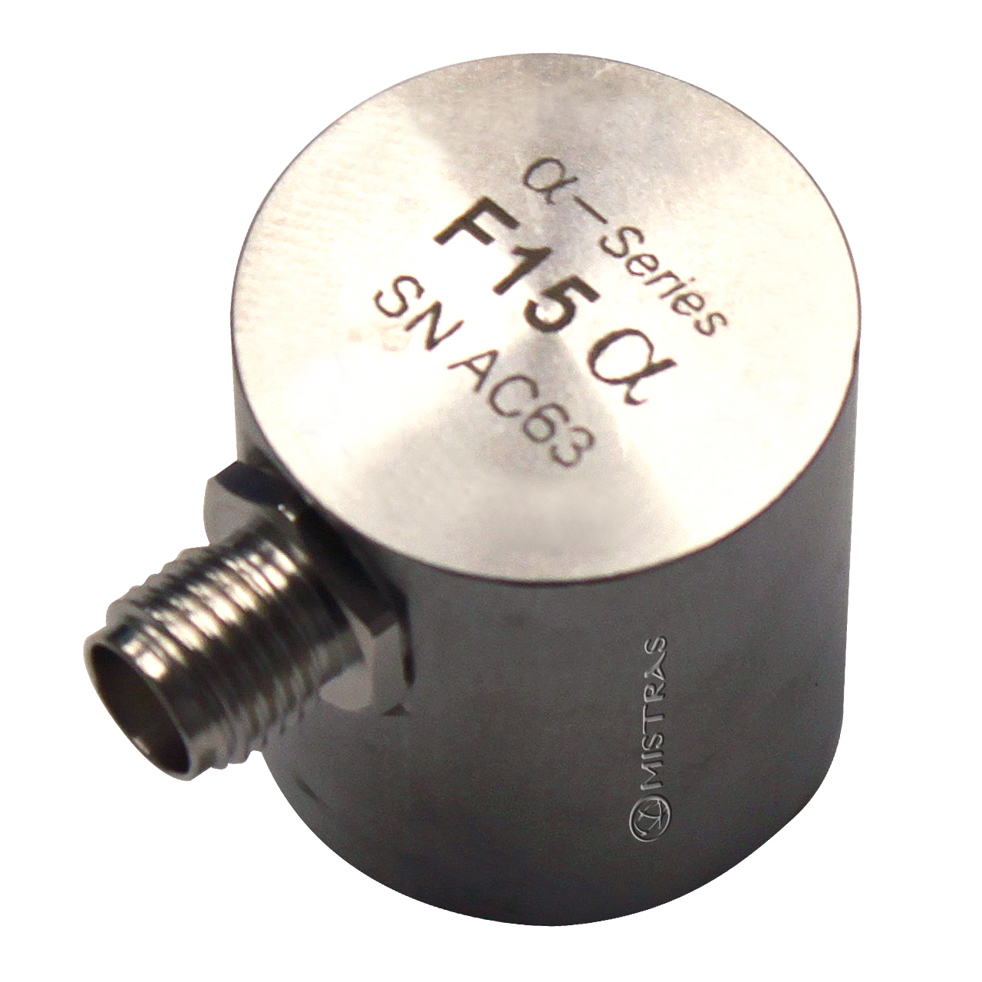

F15a - 100-450 kHz High-Sensitivity Flat Frequency Response AE Sensor
The F-series sensors are designed to incorporate the latest advances in materials and transducer design principles. These sensors unlike the resonant sensors (R-series) have a very high sensitivity and flat response in the bandwidth of operation. The F15A is a wideband sensor with a flat frequency response over the range of 100-450 kHz. This sensor is an ideal candidate for applications requiring high bandwidth for frequency analysis of the AE signals for noise discrimination and source identification. This sensor features a rugged steel construction and an SMA connector exiting from the side of the sensor.
- Wideband AE sensor with a flat 100–450 kHz response.
- Provides high sensitivity across its operating bandwidth.
- Supports frequency analysis, noise discrimination and source identification.
- Rugged steel construction for demanding applications.
- Features an SMA connector.
- Dimension Dia. x HT (mm [Inch]): 19x22.4 [.75x.88]
- Weight (gm): 34
- Operating Temp. (°C): -65 to 177
- Shock Limit (g): 500
- Case Material: Stainless Steel (304)
- Face Material: Ceramic
- Connector Type: SMA
- Connection Location: SIDE
- Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: 70 [-62]
- Operating Freq. Range (kHz): 100-450
- Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: 75 [150]
- Directionality (dB): ±1.5
- Grounding: B
- Seal Type: EPOXY
