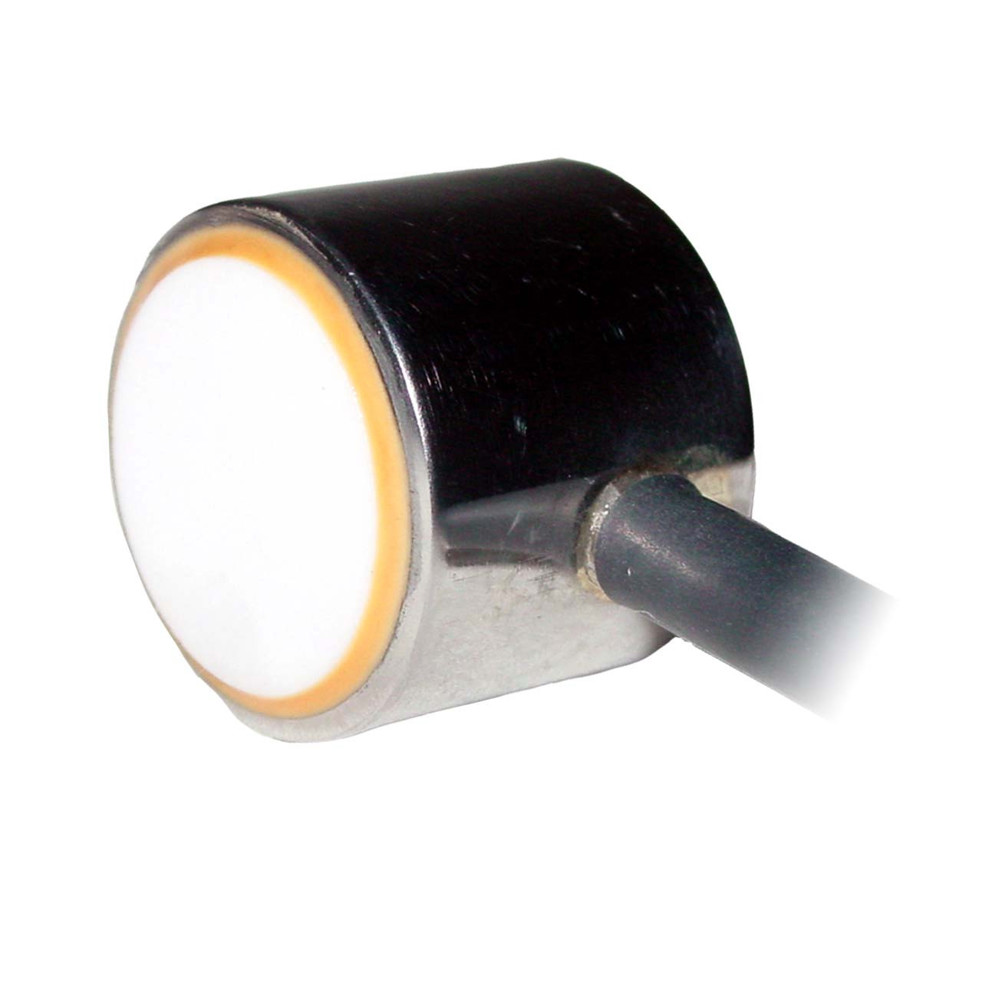

D9241A - 10-100 kHz Low-Frequency Differential AE Sensor

D9241A - 10-100 kHz Low-Frequency Differential AE Sensor

The D9241A is a high sensitivity, low resonance frequency, low noise sensor with a differential output. It has very good EMI shielding ability. Featuring a rugged stainless steel cavity, ceramic face for sensor ground isolation and integral cable with differential BNC connector, the D9241A provides high common noise rejection and low noise, even in electrically noisy environments.

  • High-sensitivity, low-noise differential AE sensor.
  • Features strong EMI shielding and common-mode noise rejection.
  • Designed for electrically noisy environments.
  • Uses a rugged stainless-steel cavity and ceramic isolation face.
  • Includes an integral cable with differential BNC connector.

  • Dimension Dia. x HT (mm [Inch]): 24x20 [.94x.79]
  • Weight (gm): 56
  • Operating Temp. (°C): -45 to 125
  • Shock Limit (g): 500
  • Case Material: Stainless Steel (304)
  • Face Material: Ceramic
  • Connector Type: Dual BNC
  • Connection Location: SIDE
  • Peak Sensitivity (dB ref. 1V/m/s) [1V/ubar]: 82 [-70]
  • Operating Freq. Range (kHz): 10-60
  • Resonant Frequency (kHz) 1V/(m/s) [1V/ubar]: 30
  • Directionality (dB): ±1.5
  • Grounding: B
  • Seal Type: EPOXY
