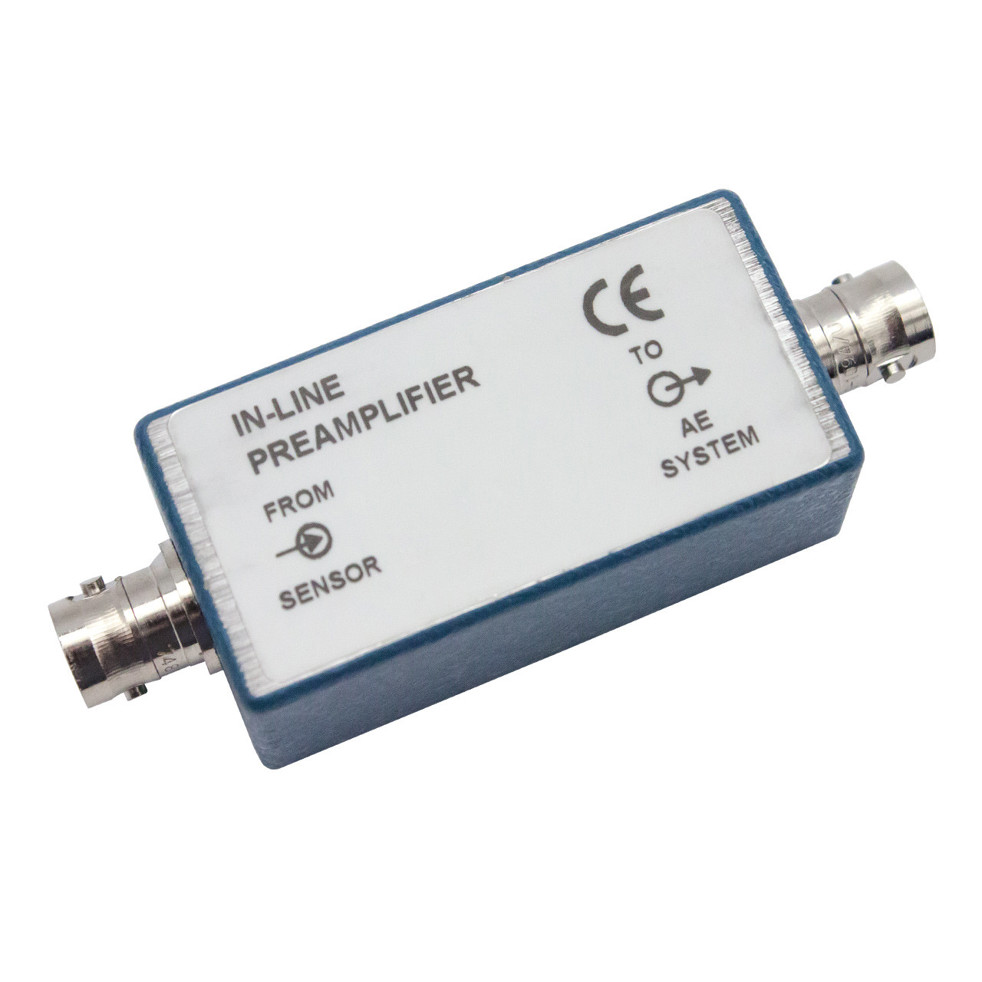

IL40S In-line
Our In-Line series of preamplifiers are small (approximately 1" x 1" x 2.2"), low-cost devices that are well-suited for applications where there is a known, specific preamplifier requirement. They have a fixed gain, fixed frequency bandwidth, and a specific sensor input connection (single or differential), which are specified at the time of purchase. The IL40S is a variant for single-ended sensors, and has a fixed gain of 40 dB. It is designed to operate with MISTRAS' standard single Power/Signal BNC, and has "light" band pass filtering to optimize sensor selectivity and noise rejection.
Optional Automatic Sensor Test (AST) functionality provides the sensor with the ability to characterize its own condition as well as send out a simulated Acoustic Emission wave that other sensors can detect.
- Compact, low-cost in-line preamplifier for single-ended sensors.
- Provides fixed 40 dB gain and bandpass filtering.
- Optimises sensor selectivity and noise rejection.
- Compatible with MISTRAS Power/Signal BNC connections.
- Optional AST functionality supports sensor performance checks.
